Regulators

Leest u a.u.b. voordat u aan de slag gaat eerst onze 'General airrifle adjustment tips, setting up your regulated rifle' en 'How to adjust the regulator pressure'. Hierin staat essentiële informatie om het maximale uit de regulator en uw geweer/pistool te halen.

Klik hiervoor op onderstaande link:

Instructies en aanvullende info Huma regulators





Bezig met laden...
400 / 500 cc Bottle pressure regulator

Snel bekijken

(0)
Extra levertijd
400 / 500 cc Bottle pressure regulator

400 / 500 cc Bottle pressure regulator

(0)
€ 134,99

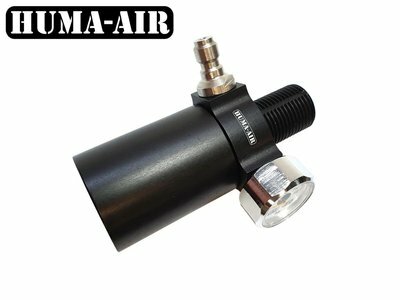

Huma-Air External Tuning Regulator For Bottled Version Rifles.


This External PCP Regulator build by Huma-Air is specialy designed for several air rifles with a pressure bottle at front of the rifle with M18x1,5 threads like the Brocock Bantam, Daystate,, Hatsan Bullmaster.

The regulator will reduce the outgoing pressure of your rifle's pressure bottle according to your settings and this will result in a constant pelletspeed and better groups.
It is equipped with a pressure gauge what will indicate the fill pressure of the bottle and a foster male connection to fill the rifle. The position of the gauge and and foster can be chosen left or right and they can be aligned stepless into their position so it always looks good on your rifle.

When the regulator is fitted to the rifle you can read the regulator output pressure on your rifles's pressure gauge and the fill pressure will be shown on the regulator gauge.
Pressure can be set by turning the set-screw of the regulator what can be found inside the male treaded part of the regulator. A 5 minutes turn contra clockwise equals to about 6-7 bar pressure increase.
This bottle regulator will be screwed in between the pressure bottle and the action of the rifle. It will ad about 58 mm of lenght. Please note, the male treaded part of you action, what will screw into the regulator can have a maximum length of 28 mm.
(your original rifle's fill connection is replaced by the regulators quick connect foster male fill connection. Do not use the original rifle bottle fill connection anymore)



The benefits of this Huma-Air tuning regulator for your rifle


  • Higher accuracy due to the elimination of the pelletspeed fluctuations
  • The solid stainless steel foster fill connection and pressure gauge can switched over from left to right
  • The position of the foster and pressure gauge can be turned around for 360 degrees. So you aligned it to your own wishes.
  • Under the pressure gauge there is a o-ring what make it posible to line the dialplate up straight for the eye.
  • It will give you a constant pellet speed over the full working pressure range.
  • It will give you a better shotcount and a full flat shotstring immediately.
  • Adding a regulator to your airrifle will probably give you the biggest benefit in the tuning process.
  • Often the rifle will make less noise due to better balance in air usage.


Pressure settings of the Huma-Air bottle regulator


Your bottle regulator comes preset on the pressure we have tesed it and it is marked on the packing. You can set the regulator according to your wishes within the pressure range. The output pressure will be shown on the factory pressure gauge of your airrifle.

Our advice for choosing the best pressure range for your Huma-Air regulator:

  • Medium pressure range:  70-150 bar for all sub 12 ftlbs rifles from 1.77, .22 and .25
  • High pressure range:       100-170 bar for FAC models in real high power .25




Important safety notes:


These regulators are not suitable for stand alone pressure bottles/buddy bottles.
The maximum working pressure of this model is 250 Bar.
Do not exceed the factory adviced fill pressure of your rifle.
Do not exchange the original factory bottle for a higher pressure bottle version.
These regulators are not suitable for a CO2 to HPA conversion, because they do not have a safety burst disk.
This regulator cannot be used as a replacement regulator for factory regulators equipped with a safety burst disk (like paintball regs or RTI priest regulator) as the Huma-Air model does not have a burst disk. When the regulator would malfunction, the full fill pressure of the bottle will be inside the action of the rifle what could be potential very dangerous)



Power setting of your rifle:



Please note, your rifles output power depends of the available air volume behind the regulator. You need about 12 cc for .22 and 16 cc in .25 for high power rifles. If you are not sure, measure the air channels in the action and we can help you calculate it. We will ad rifles to the list below when we have received information.

  • Hatsan Nova, Airmax, Barriage, Hercules Bully are not suitable for this regulator



Huma-Air Quality Control


Huma-Air regulators are CNC produced out of high grade aircraft Aluminum and bronze.
To guarantee a perfect product, every regulator is manually assembled, tested and adjusted to the requested pressure.
We only use high-end materials and our belleville springs are designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle less than 1% difference.

External Din300 High Pressure Air Regulator

Snel bekijken

(0)
Op voorraad
External Din300 High Pressure Air Regulator

External Din300 High Pressure Air Regulator

(0)
€ 279,00

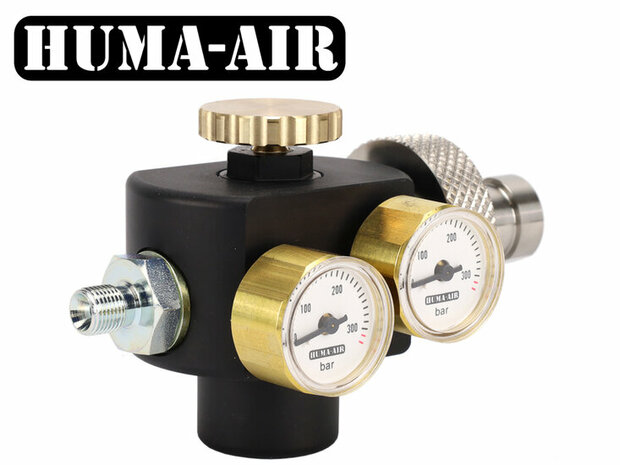

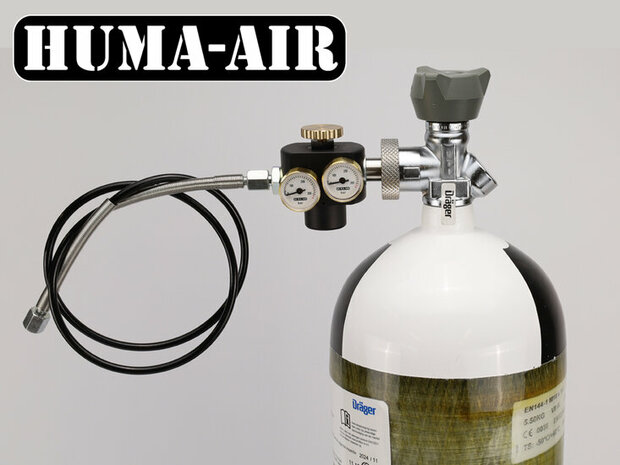

External Din300 High Pressure Air Regulator

This external high pressure air regulator is specially designed for airgun shooting or filling and it can be screwed on to a 200/300 bar scuba tank with DIN300 connection.
The regulator will reduce the outgoing pressure according to your settings, so you can optimize the working pressure matching your airrifle or pressure tube.
A stable pressure is the base for a a constant pelletspeed and better groups when you are shooting tethered.
With the large bronze set screw you will be able to adjust the outgoing pressure very precize and the regulator is equipped with two pressure gauges, one shows the tank pressure and the other one will indicate the output pressure.
An 28 mm digital mini pressure gauge or a Wika analogue gauge can be placed on the regulator for the input- or output pressure as option.

One turn of the handwheel counter clockwise will raise pressure approximately 40 bar (580PSI)

A breedscrew is fitted to the regulator body so this regulator can fully function as a stand alone fillset.

The input pressure is 200/300 bar and the output pressure is stepless adjustable from about 50 up to 250 bar.
The regulator is fitted with a G1/8BSP male connection what connects to most fill hoses, or you can screw a foster male coupler on it.
A microbore fill hose (not included) can be ordered as extra.

Huma-Air Quality Control

Huma Air regulators are CNC produced out of high grade aircraft aluminum and bronze. To guarantee a perfect product, every regulator is individually assembled, tested in a computerized simulation program and adjusted to the requested pressure.
We only use high-end materials and our belleville springs are designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle with less than 1% difference.
Huma Air provides a 2-year warranty onto their regulators. Excluded from warranty are shipping costs and parts that are subject to normal wear and tear such as o-rings.

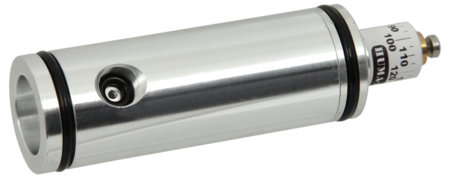

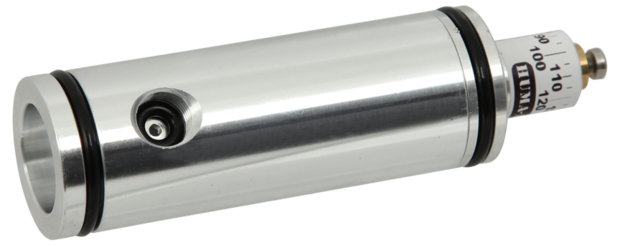

Instructies en aanvullende info Huma regulators

Snel bekijken

(1)
Op voorraad
Instructies en aanvullende info Huma regulators

Instructies en aanvullende info Huma regulators

(1)
€ 0,00

Leest u a.u.b. voordat u aan de slag gaat eerst onze 'General airrifle adjustment tips, setting up your regulated rifle' en 'How to adjust the regulator pressure'. Hierin staat essentiële informatie om het maximale uit de regulator en uw geweer/pistool te halen. Zie hiervoor onderaan de pagina de bijlagen.

Hoe werkt een regulator?
Een pcp werkt met een luchtreservoir met perslucht. Als je schiet dan slaat een hamer(gewicht) op een klep die hierdoor iets opengaat en een hoeveelheid lucht laat ontsnappen. Deze lucht stuwt je pellet voort en geeft hem afhankelijk van de druk een snelheid mee.

Bij een ongereguleerde buks begin je bijvoorbeeld met 200 bar. Nadat je een aantal pellets hebt verschoten zal de druk bij elk schot een klein beetje dalen. U kunt zich vast voorstellen dat de hamer bij een tegendruk van 200 bar deze klep een stuk moeilijker open kan krijgen dan bij bijvoorbeeld 120 bar. Met andere woorden, bij een volle drukbuis schiet de buks een stuk zachter en naarmate je een aantal pellets hebt verschoten is de tegendruk kleiner en kan de klep makkelijker worden opengeslagen en gaat de buks telkens iets harder schieten. Dit tot op een punt dat er zoveel minder druk in de drukbuis zit dat de buks weer zachter gaat schieten. Omdat je pellet dus telkens een andere snelheid heeft zie je dat het punt van inslag ook telkens verschuift. Van beneden de roos naar boven en vervolgens zakt hij weer terug.

Een regulator is een soort van interne drukregelaar die ervoor zorgt dat de drukbuis als het ware wordt opgedeeld in twee stukken. Het eerste deel is de primaire hoge vuldruk en het tweede deel is als het ware de secundaire geregelde druk. ook wel de werkdruk genoemd. De werkdruk is nodig om de pellet een bepaalde snelheid te laten halen. Deze werkdruk is met de regulator in te stellen.

Met een regulator heb je dus bij elk schot een exact gelijke werkdruk. Deze blijft constant totdat de druk in het primaire deel van de drukbuis onder de ingestelde werkdruk zakt. Voordeel is dat je bij elk schot dus nagenoeg dezelfde pelletsnelheid hebt en erg constant kan schieten. Je inslagpunt zal hierdoor niet tot nauwelijks veranderen. Ook heb je minder hamergewicht nodig om de klep open te slaan, de werkdruk is immers een stuk lager. De buks gaat dus een veel rustiger schietgedrag vertonen. Daaraast zal het luchtverbruik drastisch minder worden waardoor je meer schoten per vulling kunt lossen.

Zie hieronder een grafiek van een Spa P12 Bullpup zonder regulator (blauwe lijn) en met regulator (rode lijn).
Tevens ziet u onder de grafiek een tabel waarin de waardes van de Spa P12 zonder regulator links zijn weergegeven en die van de Spa P12 met regulator rechts.



Huma-Air
De allerbeste regulatoren op de markt worden in ons eigen kikkerlandje ontworpen en geproduceerd. Al meerdere jaren werkt Metura Schietsport samen met Huma-Air.

Heet u interesse om van uw ongereguleerde persluchtbuks een potentiële wedstrijdwinnaar te laten maken? Dat kan. Metura heeft een gecertificeerd wapenmaker met jarenlange ervaring in luchtwapen tuning.
De buks wordt in zijn geheel gedemonteerd en gepolijst waar nodig. Daarbij stellen we hamer, hamerveer en transferpoort op elkaar af om een optimaal rendement te behalen. Een verdubbeling van het aantal gelijke schoten is geen zeldzaamheid. Als onderdeel van de tuning wordt ook de trekkergroep afgesteld en, indien nodig, voorzien van lichtere drukveren. Een enkele keer als het noodzakelijk is wordt ook de loop gepolijst aan beide kanten. Tot slot wordt de buks onderworpen aan een snelheidsmeting.

De kosten hiervoor zijn tussen de €135,- en €150,- afhankelijk van het model en de bijkomende hoeveelheid werk. Dit is inclusief regulator, afstellen, polijsten, instellen, snelheidsmetingen en een jaar garantie.

Regulator voor een ander model?
Zoekt u een regulator voor een ander model? Dat kan! Regulatoren kunnen ook op maat gemaakt worden voor niet veel voorkomende modellen. Een oude air arms of FX bijvoorbeeld. Maar ook andere minder voorkomende modellen of groot kaliber modellen.
Mocht u hierin geïnteresseerd zijn, schroom dan niet om contact met ons op te nemen. Zie hiervoor de tab 'Contact - Openingstijden' bovenaan de pagina.

Leest u a.u.b. voordat u aan de slag gaat eerst onze 'General airrifle adjustment tips, setting up your regulated rifle' en 'How to adjust the regulator pressure'. Hierin staat essentiële informatie om het maximale uit de regulator en uw geweer/pistool te halen. Zie hiervoor onderaan de pagina de bijlagen.
