Huma-Air FX Impact Tuning Regulator
(0)
Huma-Air FX Impact Tuning Regulator

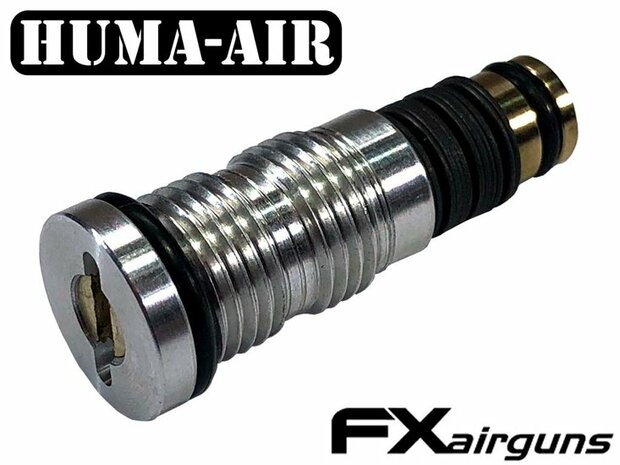

This FX Impact regulator by Huma-Air is specially designed as a "one on one" replacement regulator for your FX Impact, FX Impact X or FX crown. It is compatible with factory regulators that use 8 mm diameter belleville springs, produced untill 03 - 2018
Unfortunately the fixed limited space in the FX Impact action was not sufficient for our standard Huma-Air Regulator design, so we had to comply our design to the ratio's used by FX. Never the less we have accomplished to make a great replacement regulator that will solve the known issues of the factory regulator.
What can you expect of the Huma-Air FX Impact Regulator:
- The recovery time in between shots is much faster compared to the factory regulator.
- This Huma FX impact regulator can be adjusted higher in pressure from the outside while the rifle is under pressure.
- Equal as the factory reg, if you want to lower the pressure, the rifle needs to be de-pressurized first otherwise the valve gets damaged.
- By using another type of material for the valve and piston, there is no way you can damage the piston because of faulty pressure adjustments.
- We also supply some extra valves, so in case you adjust the pressure to the wrong side, and you damage the valve, it can be replaced without any extra costs.
Pressure settings
The design of the regulator makes it posible for setting it exactly to your wishes while placed in your FX impact by watching the output pressure gauge on you rifle. We have three pressure ranges for the FX Impact regulator available:
- The High Pressure range, 80-150 Bar. This will suit all calibers within the normal FAC range.
- The Extra High Pressure range, 145-190 Bar. When you want to have extreme settings. Please note: raising the pressure above the factory set pressure is on your own risk!
- The Low Pressure range, 50-90 Bar. Especially for sub 12 ft/lbs models.
Please note: you need to do the stacking of the belleville springs on the piston yourself according to the manual, because we do not want to risk them to fall off the piston during transport.
Huma-Air Quality Control
Huma-Air regulator's are CNC produced out of high grade aircraft Aluminum and bronze. To guarantee a perfect product, every regulator is manually assembled, tested and adjusted to the requested pressure. We only use high-end materials and our belleville springs are designed for critical applications to achieve the highest repeat accuracy.
